Product Center High-Performance Conductive Silver Powder Conductive Silver Powder
Conductive Silver Powder

Conductive Silver Powder

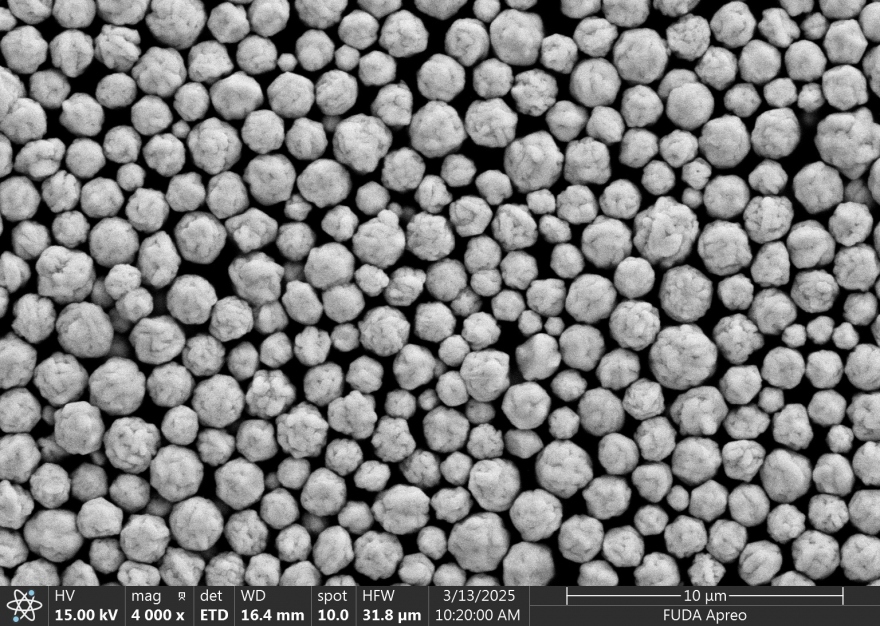

Silver powder is a key "necklace" material in the photovoltaic industry chain, accounting for about 10% of the cost of photovoltaic cells. As the most expensive auxiliary material, it belongs to the strategic emerging industries of "new energy" and "new materials" encouraged by the state. The company independently designs a variety of mass transfer reaction devices, combined with material ratios and process parameters, to precisely control the direction and speed of grain aggregation and growth, so as to obtain high-performance silver powders with different crystal forms and particle sizes, which are suitable for various solar cell pastes and electronic paste needs.

Related Products

Silver powder

Application Scenarios:

1.Sintering-Type Silver Paste Such as TOPCon/PERC front silver fine grid, main grid silver paste, thick-film electronic paste;2.Low-Temperature Curing Paste Such as HJT and TP pastes;

Printing Stencils:

Highlights:

1.Adjustable high/low crystallinity, high sintering activity, good electrical conductivity;

2.Narrow particle size distribution, suitable for fine line printing, especially meeting 10-12μm line width requirements;

3.Customizable surface properties to adapt to paste rheology and high-speed printing requirements;

4.Compatible with TOPCon/PERC cell main grid and fine grid silver pastes.
